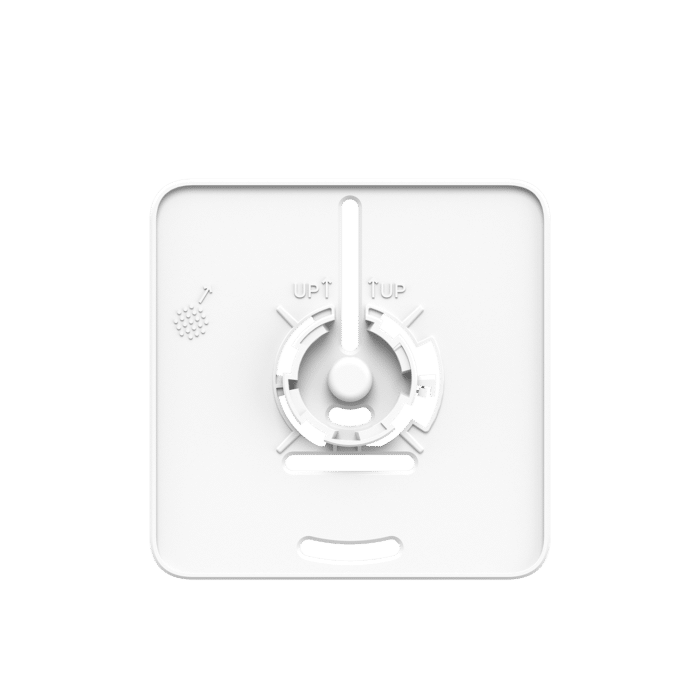

MOUNT+
Universal mounting base
-
Quick installation
1 minute is all it takes to unscrew the base from the old detector and screw on a new MOUNT+ base in its place
-
Magnetic structure
Generates a specific magnetic field for compatible NEXELEC detectors
-
Universal
-
Magnetic
Designed for professionals!
Do you need to install NEXELEC smoke detectors to replace other brands?
The MOUNT+ universal mounting base is designed to be compatible with a wide range of sensor mounting holes of different makes and models.
Installation of the new NEXELEC detector is simplified and installation time reduced:
- Time-saving
- Cost reduction
- Less property damage
Certified installation
Features
-
Universal base
Polycarbonate plastic
Can be retrofitted to existing plugs
Wide mounting centers
Compatible with all brands of detectors -
Conditions of use
Indoor environment
Temperature: 14°F to 122°F
Humidity: 0% RH to 99% RH (non-condensing) -
Dimensions
3.94 x 3.94 x 0.08 in
-
Assembly
Wall or ceiling
To be used exclusively with NEXELEC detectors
References
| Reference | Packaging |
|---|---|
| S005-PRO | Batch of 50 pieces |
Frequently Asked Questions
Our experts answer your questions
The MOUNT+ mounting base is compatible with most products in the Nexelec range.
List of compatible products :
- INSAFE+, ORIGIN, ORIGIN+, GUARD, GUARD+, HEAT+, WARM, SECURE+, AIR, AIR+, AIR+.
Make sure that the MOUNT+ base is securely fastened to its mounting bracket.
To install the detector :
- Position the detector so that it fits lightly into its base
- Turn a quarter turn to the right to engage the detector
The detector is now in place.
MOUNT+ can be attached to a support in two different ways:
- With screws and plugs (supplied)
- An approved 3M adhesive mount (optional accessory)
Some NEXELEC products are equipped with a “pull-out detection” function.
This protection device secures the installation of connected devices and triggers an alert message in the application if the product is removed from its mounting base.
*Refer to “Installation” in the NEXELEC user manual. AFNOR Certification recommends fixing the detectors with screws and plugs.
