CORE+
Wireless interconnected smoke and carbon monoxide alarm
-
Photoelectric smoke sensor
Sensor type: photoelectric
-
Electrochemical CO sensor
Sensor type: electrochemical
-
10 year battery
Two sealed lithium batteries, no replacement required
-
Smoke
-
CO
-
UL 217
-
UL 2034
Reliable wireless interconnection for multi-alarm protection
Designed for modern residential and multifamily environments, CORE+ enables multiple alarms to work together through a wireless interconnection system. This allows alerts to be shared across devices, improving response time and overall safety within the property.
Clear alerts and simple user interaction
CORE+ is designed to communicate clearly with occupants during alarms or system notifications. Audible and visual indicators ensure alerts are easy to understand and respond to
Voice alert system
Voice messages include alarm notifications and system prompts
LED indicators
Visual indicators use three colors: red, green and yellow

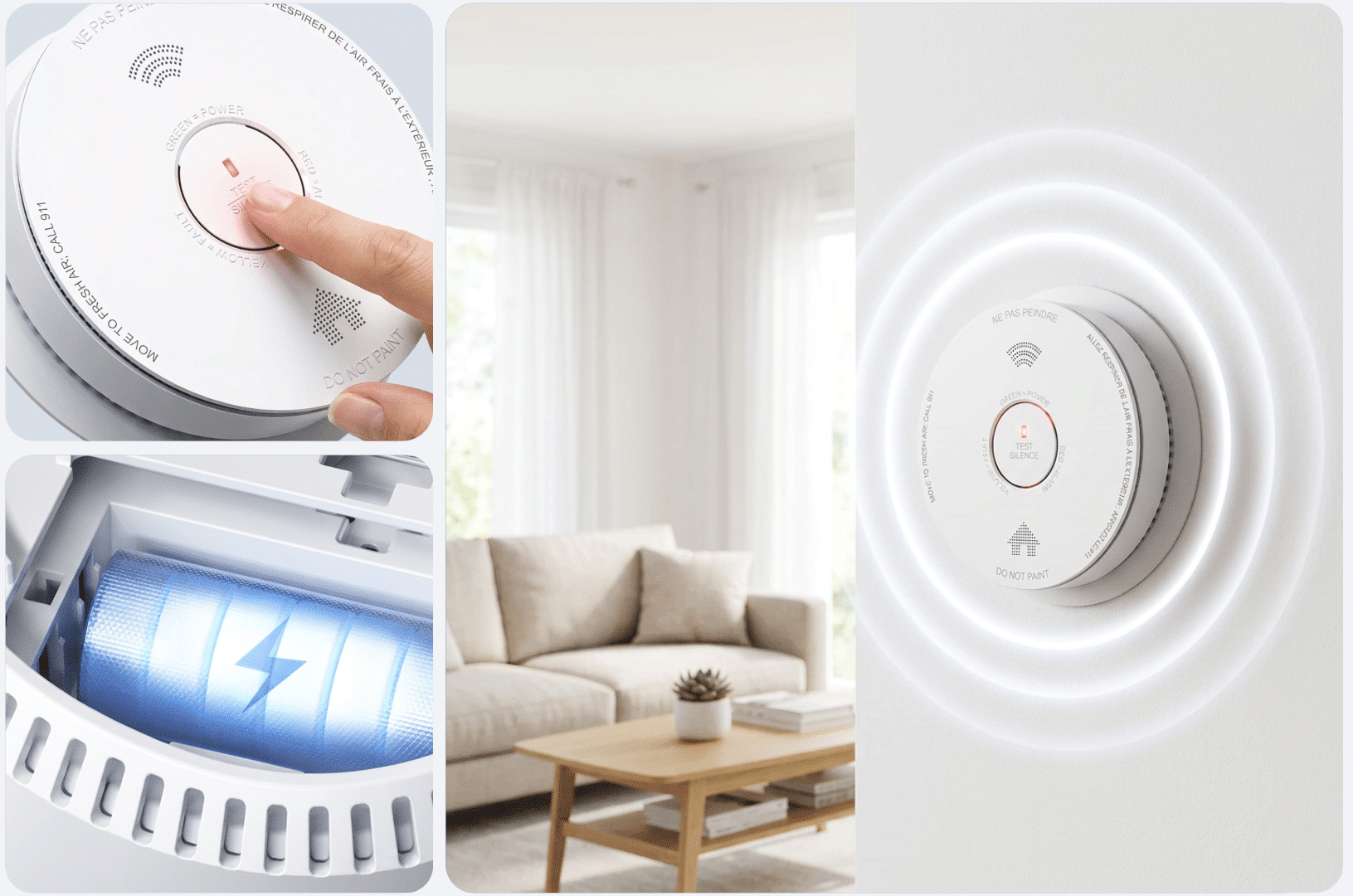

Test/Hush button
A Test/Hush button allows users to test the alarm and temporarily silence alerts when appropriate
Designed for long-term residential installation
CORE+ is engineered for reliable long-term use in residential environments, with installation options suited to a wide range of building layouts
10 year battery
Two sealed lithium batteries, no replacement required
Sound level
Sound level: 85 dB at 10 ft
Mounting options
The alarm can be installed on a wall or on a ceiling
Dual detection technology
Detects fire and carbon monoxide (CO) risks
NAVIXIS: the digital logbook for monitoring detectors
Complete history
Traceability of installation and maintenance of each device: useful information for insurance purposes or regulatory inspections
Ease of management
Information is stored and accessible online for simplified, centralized monitoring of a fleet of several thousand products.
API interface and connectors
The digital notebook integrates easily with your favorite management software thanks to our APIs and dedicated connectors
Automated tracking
The logbook can be configured to send reminders when it's time to check or replace products
Specifications
-
Smoke
Photoelectric sensor (smoke)
-
Carbon monoxide
Electrochemical sensor (CO
Features
-
Operating Conditions
Indoor environment
Temperature: 40°F to 100°F (4.4°C to 37.8°C)
Humidity: 10–95% RH (non-condensing) -
Mounting Type
Wall or ceiling installation
-
Box Contents
1 detector
1 mounting bracket
2 screws
2 wall anchors
1 user manual -
Certifications
UL 217 (10th Edition)
UL 2034 (5th Edition)
ULC 531 (5th Edition)
CSA 6.19 (2nd Edition)
ETL Listed
References
| Reference | Battery |
|---|---|
| K886FC | 10 years |
Sealed lithium battery power
CORE+ is powered by two sealed lithium batteries designed to operate for the entire life of the detector. No battery replacement is required, helping simplify maintenance and ensuring reliable long-term protection
Certified safety standards
CORE+ aligns with major safety standards used for smoke and carbon monoxide detection devices.
The product references UL 217 (10th Edition) and UL 2034 (5th Edition), along with certifications to ULC 531 (5th Edition) and CSA 6.19 (2nd Edition).
Understanding smoke detector requirements in New York City
Installation requirements for smoke detectors can vary depending on building type, local regulations and property management rules. Property owners and installers should always verify the applicable regulations and installation guidelines required by local authorities and building codes
