BASE+

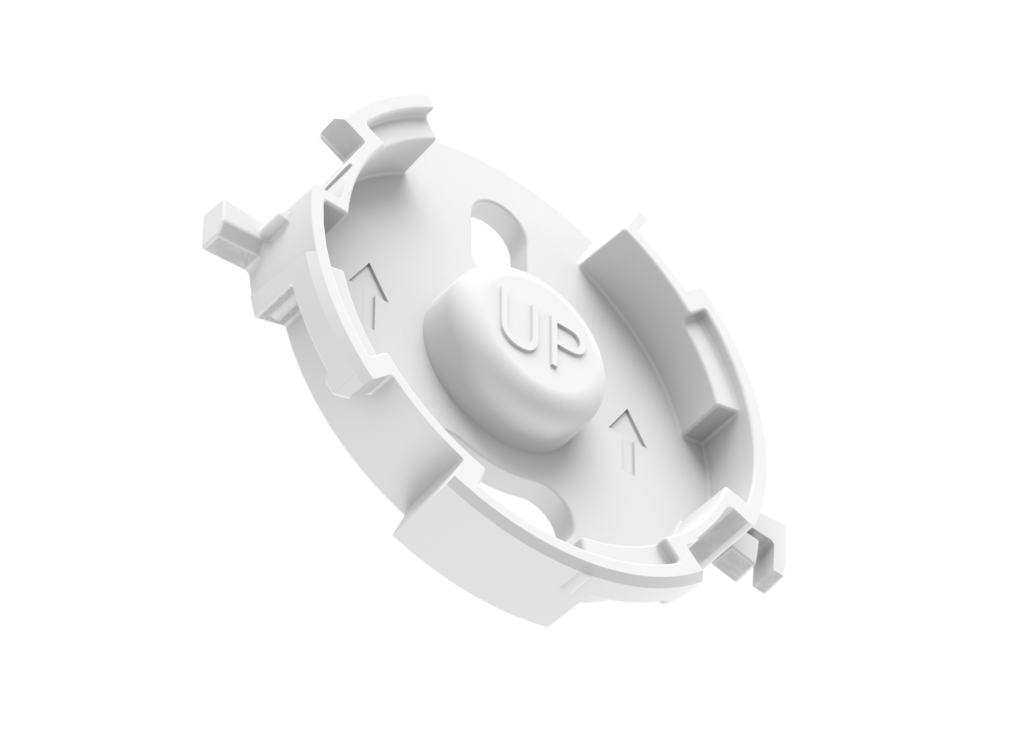

Compact mounting base
-
Easy to install
Install your NEXELEC detectors without drilling large mounting holes
-
Magnetic structure
Generates a specific magnetic field for compatible NEXELEC detectors
-
Compact
-
Magnetic
Designed for professionals!

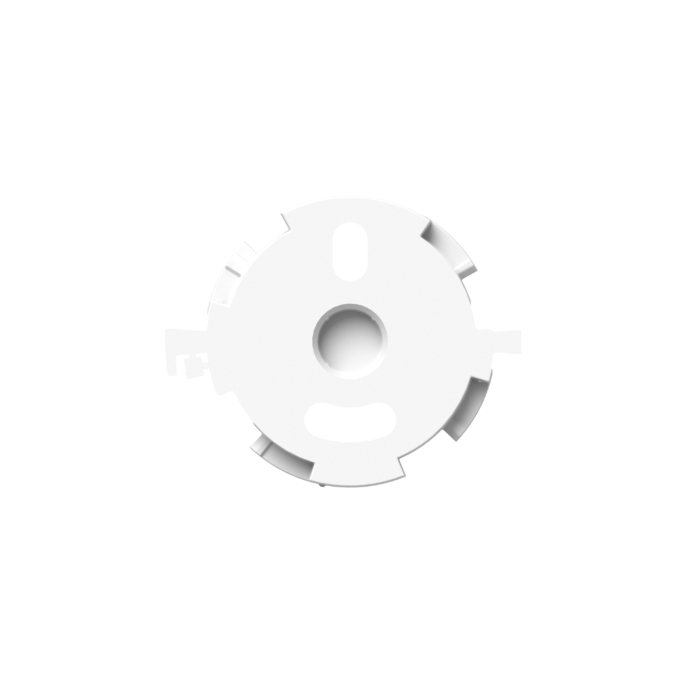

BASE+ is the standard mounting base for all NEXELEC detectors.
Discreet and small in size, BASE+ is a space-saving base that causes less damage to walls or ceilings during installation:
- More aesthetic
- Less property damage
Certified installation
BASE+ is compatible with unconnected smoke and carbon monoxide detectors from the range: INSAFE+, ORIGIN, ORIGIN+, GUARD, GUARD+, SECURE+, AIR, AIR+.
Features
-
Base
Polycarbonate plastic
-
Conditions of use
Indoor environment
Temperature: 14°F to 122°F
Humidity: 0% RH to 99% RH (non-condensing) -
Dimensions
1.18 x 1.18 in
-
Assembly
Wall or ceiling
To be used exclusively with NEXELEC detectors -
Set contents
1 mounting base
References
| Reference | Packaging |
|---|---|
| M056A | Unitary |
Frequently Asked Questions
Our experts answer your questions
The BASE+ mounting base is compatible with most products in the Nexelec range.
List of compatible products :
- INSAFE+, ORIGIN, ORIGIN+, GUARD, GUARD+, HEAT+, WARM, SECURE+, AIR, AIR+.
Make sure the BASE+ base is securely fastened to its mounting bracket.
To install the detector :
- Position the detector so that it fits lightly into its base
- Turn a quarter turn to the right to engage the detector
The detector is now in place.
BASE+ can be attached to a support in two different ways:
- With screws and plugs (supplied)
- An approved 3M adhesive mount (optional accessory)
Some NEXELEC products are equipped with a “pull-out detection” function.
This protection device secures the installation of connected devices and triggers an alert message in the application if the product is removed from its mounting base.
*Refer to “Installation” in the NEXELEC user manual. AFNOR Certification recommends fixing the detectors with screws and plugs.
